SuperMod Platform
SuperMod 90 degree corner
SuperMod Modular Suspended Platforms
Compliant with North American Standards
Winsafe’s SuperMod modular suspended platform system, offered by Power Climber, is the strongest, safest system on the market today. A modular approach with a broad range of sizes ensures there is a stage configuration available to suit any application.
Steel U-frames provide a rigid frame and steel stirrups have the strength to handle even the toughest jobsite conditions. Steel has 1/3 the flex of aluminum, providing a more rigid, better riding platform.
The aluminum trusses weigh about the same as European trusses, but the toeboard is two inches shorter. The extra material is used in the bottom chord, making it twice as thick as the competition.
Specifications
| Part Number | Description | Weight |
|---|---|---|
| MOD65 | 1/2 m Truss | 8 lb (3.6 kg) |
| MOD64 | 1/2 m Floor | 6 lb (2.7 kg) |
| MOD67 | 1/2 m Handrail | 2 lb (0.9 kg) |
| MOD10 | 1 m Truss | 13 lb (5.9 kg) |
| MOD13 | 1 m Floor | 16 lb (7.3 kg) |
| MOD12 | 1 m Handrail | 3 lb (1.4 kg) |
| MOD232 | 1.5 m Truss | 19 lb (8.6 kg) |
| MOD231 | 1.5 m Floor | 24 lb (10.9 kg) |
| MOD231 | 1.5 m Handrail | 5 lb (2.3 kg) |
| MOD20 | 2 m Truss | 24 lb (10.9 kg) |
| MOD23 | 2 m Floor | 32 lb (14.5 kg) |
| MOD22 | 2 m Handrail | 6 lb (2.7 kg) |
| MOD30 | 3 m Truss | 36 lb (16.3 kg) |
| MOD33 | 3 m Floor | 48 lb (21.8 kg) |
| MOD32 | 3 m Handrail | 9 lb (4.1 kg) |
| MOD26 | End Frame | TBD |
Specifications
| Part Number | Description |
|---|---|
| MOD55 | 90° Corner Truss |
| MOD57 | 90° Corner Floor |
| MOD56 | 90° Corner Handrail |
| MOD61 | 60° Corner Truss |
| MOD63 | 60° Corner Floor |
| MOD62 | 60° Corner Handrail |
| MOD58 | 45° Corner Truss |
| MOD60 | 45° Corner Floor |
| MOD59 | 45° Corner Handrail |
| MOD68 | 30° Corner Truss |
| MOD70 | 30° Corner Floor |
| MOD69 | 30° Corner Handrail |
| MOD1559 | Adjustable corner section |
Note: A corner typically consists of:
- 1X MOD80 Corner Frame
- 1 EACH X° Corner Truss, Corner Floor, Corner Handrail
- 2X MOD29 Handrail Post
- 2X MOD85 Handrail Post
*Custom corner angles are also available. Contact Power Climber to learn more.
Specifications
| Part Number | Description |
|---|---|
| MOD08 | End Stirrup |
| MOD35 | C Stirrup |
| MOD1297 | Adjustable Incline Stirrup |
| MOD05 | U connector with pins |
| MOD90 | Platform Hinge Section |
| MOD29 | Handrail Post with Pins (Double) |
| MOD85 | Handrail Post with Pins Single |
Specifications
| Part Number | Description |
|---|---|
| MOD18 | Casters |
| MOD46 | 12″ Roller bumper |
| MOD15 | Replacement Mod Pin Assembly |

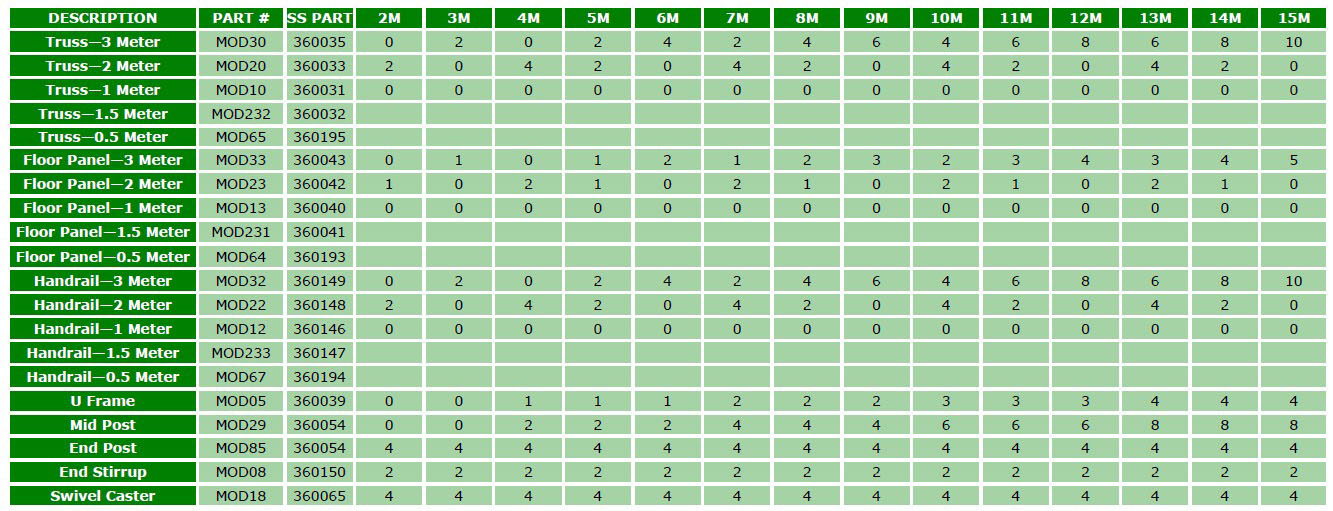

SuperMod Configurations by Component
Talk to a Specialist
"*" indicates required fields
SuperMod Safe Working Loads
End Stirrup Platforms
Lengths of up to 48 ft 9 in. (14.9 m)
Cantilever Platforms
Lengths of up to 62 ft 3 in. (19 m) with walk-through stirrups.
Corner Platforms
Corner sections available to fit even the most challenging building shapes.
U-Shaped Platforms
Platforms that surround three sides of a structure.
Circular Platforms
Ideal for working on smokestacks and other circular towers.
Adjustable Incline Rollers & Incline Stirrups
For working on sloped surfaces.
