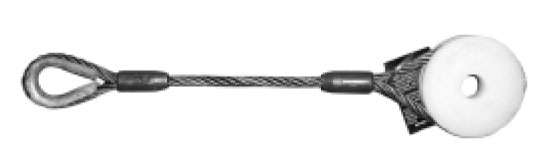

Insulated thimble assembly

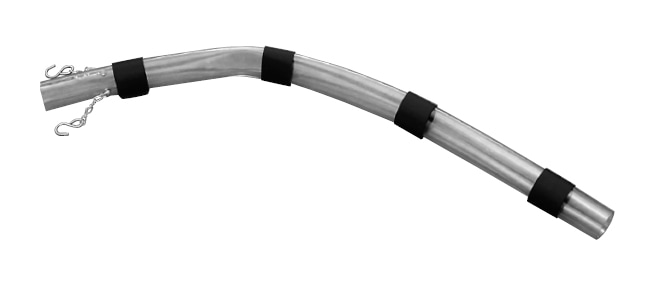

Arc guard
Arc guard
Wire Rope Insulation & Welding Accessories
Compliant with North American Standards
Spider’s wire rope insulation and welding accessories provide critical safety protection when performing welding from a suspended basket or platform.
- Insulated thimble assemblies isolate the wire rope to protect rigging and structural components above.
- Arc guard protects the wire rope above and below fair lead and below deck to prevent accidental severing of the wire while welding.
Specifications
| Part Number | Description | End Type | Length | Material |
|---|---|---|---|---|
| 4897 | Wire rope insulator assembly | Thimble | 762 ft (30 m) | Plastic dipped porcelain |
| 725701-1 | Insulated thimble assembly (8.4 mm) | Seized End | 30 ft (9.1 m) | Nylon |
| 725701-2 | Insulated thimble assembly (8.4 mm) | Thimble | 15 ft (4.5 m) | Nylon |
| 725701-3 | Insulated thimble assembly (8.4 mm) | Clip End | 30 ft (9.1 m) | Nylon |
Key Features
- Can be used with all traction hoists
- Tested to withstand 600V
- For use with hoists up to 1,500 lb. (680.4 kg) load capacity
- Assembly length allows travel within 30 ft (9.1 m) of rigging point
- Breaking strength is 12,500 lb.
Compliance
OSHA Standard 29 CFR 1926.451 (f) (17)
Specifications
| Part Number | Description |
|---|---|
| 1581 | Mid Assy; Arc Guard |
| 701880-1 | Arc-Guard; Mid Assy; Walkthrough |
| 4485 | Top Arc Guard |
| 701301-1 | Traction Hoist Arc Guard |
| 725702-1 | Assy; Safety Welding Ground (Magnet) |
| 725703-1 | Welding Ground Assy; Dual Clamp |
| 9970 | Hoist cover |
Key Features
Arc guard kits are used during welding to protect the hoist and wire rope from damage.

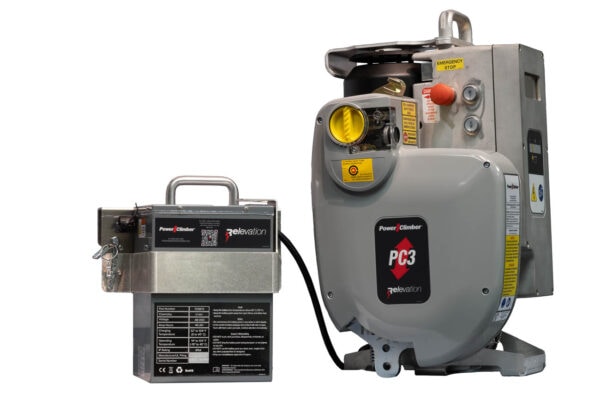

Note: All components are required for complete protection when welding. For example, a PC3 on an end stirrup requires the following components for complete welding protection:
- 1581 or 701301-1 Mid Arc Guard
- 4485 Top Arc Guard
- 9970 Hoist Cover
- 725702-1 or 725703-1 Welding Ground Assy (Depending on what is available for grounding)
- Any of the Insulated Thimble Assemblies (e.g., 725701-2)
