BD-00023

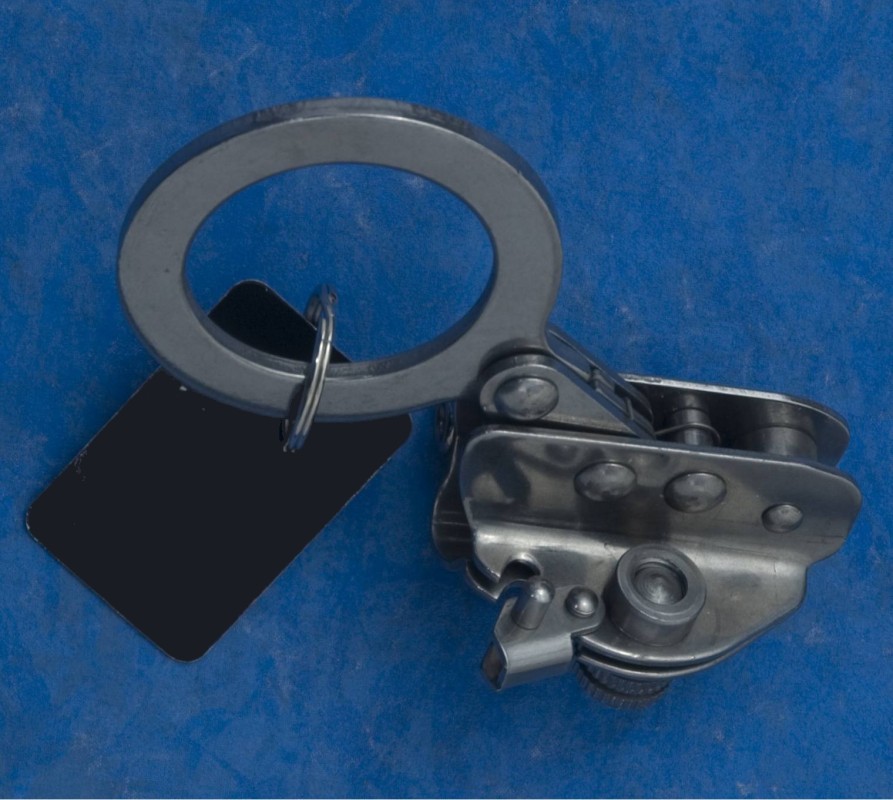

Rope & Cable Grabs
Compliant with North American Standards
Ideal for use on towers, swing stages, scaffolding, steel erecting and roofing, our vertical automatic rope grabs let you move up and down the lifeline freely. You can attach or detach them at any point on the lifeline. If you fall, they automatically lock on the rope and stop the fall.
Specifications
| Part Number | Item | Material Of Construction | Load Limit | Compatibility |
|---|---|---|---|---|
| BD-00023 | 5/8 in. (16 mm) Diameter Stainless Steel Trailing Rope Grab | All non-corrosive materials; stainless steel, brass and bronze | 1 worker: 310 lbs (140.6 kg) including person, tools, etc. | 5/8 in. Polyester / Polymer Rope |
| P-00213 | 5/16 in. (8 mm) Cable Grab | High Strength, Corrosion-resistant Stainless Steel | 1 worker: 310 lbs (140.6 kg) including person, tools, etc. | 5/16 in. Wire Rope |
Key Features
- Hands-free operation on weighted vertical safety line
- Double lock closing mechanism
- Hinge design permits attachment anywhere on the lifeline
- Large ring for direct web attachment or snap hook connection
- Moves freely along 5/8″ rope on brass rollers
- All non-corrosive materials: Stainless steel, brass and bronze provide maximum durability
Certifications
Power Climber’s Rope Grabs meet or exceed the requirements of OSHA 1926 Subpart M, ANSI A10.14 and ANSI Z359.1 at the time of shipment.
Identification
Identification is made by the presence of impression stamps on the side plates of the grab.
