Home > Products > PC1 Pocket Climber Hoists

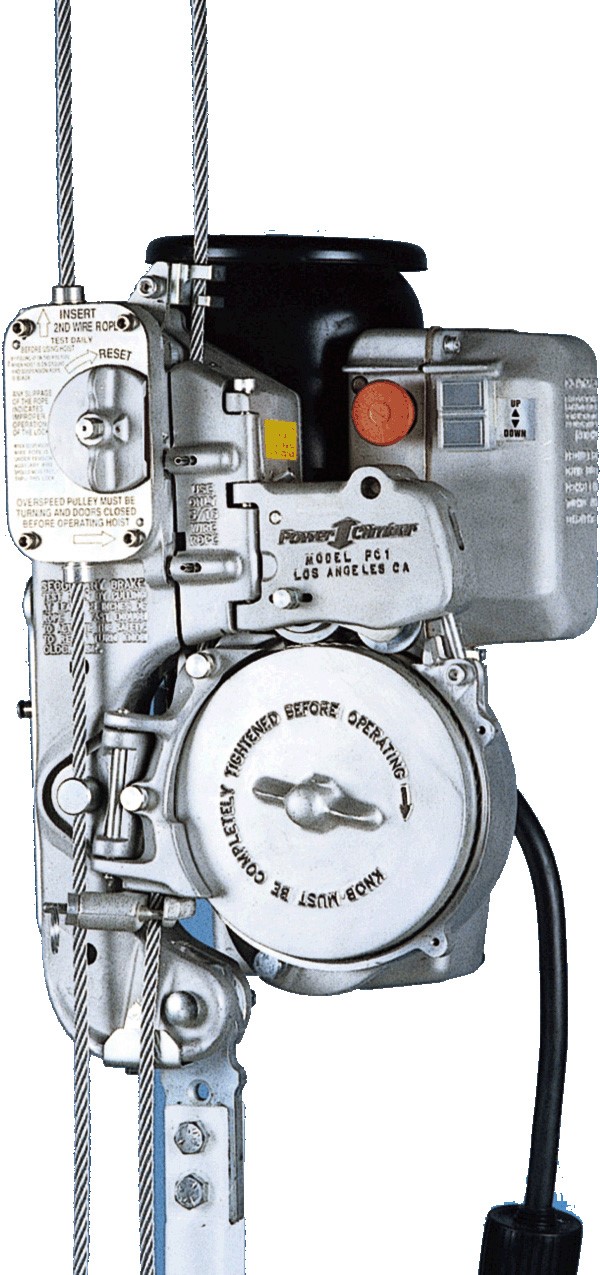

PC1 Pocket Climber Hoists


Compliant with North American Standards

Since it was launched in 1993, Power Climber’s market leading PC1 Pocket Climber hoist has combined trusted breech reeving capability with proven low voltage performance.

With the deepest voltage operating range available and an easy-to-replace motherboard, the PC1 manages poor power better than any other comparable hoists in the market today.


Part NumberItem NameTypePowerWeight
99422PC1-1000EElectric208 VAC 1 Ph102 lb (46.3 kg)
99413PC1-1000E3Electric208/240 VAC 3 Ph102 lb (46.3 kg)
99415PC1-1000 EDVElectric220/110 VAC 1 Ph104 lb (47.2 kg)
99418PC1-1000AAir90-120 PSI88 lb (40 kg)

Additional Specifications

  • Working Load Limit: 1,000 lb (453.6 kg)
  • Dimensions: 14 x 12 x 24 in (356 x 305 x 610 mm)
  • Travel Speed: 35 ft/min (10.7 m/min)
  • Hoist Construction: Aluminum, Steel and Engineered Polymer
  • Wire Rope Diameter: 5/16 in, 8 mm or 8.4 mm
  • Wire Rope Construction: 5 x 26 or 6 x 19 IWRC or FC Right Regular Lay IPS or EIPS Preformed, Galvanized or Bright

Talk to a Specialist

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Key Features

  • Proven market leading PC1 with reliable performance from 177-229 run volts
  • Simple electrical troubleshooting using motherboard swap-out method
  • Breech reeving allows no-power rigging and derigging, saving time and money
  • Easily self-reeves
  • Easy to operate, train to, and troubleshoot
  • Backwards-compatible components allow owners to easily update their older PC1s with the best combination of power management and fleet-efficient features

Made in the USA

  • Rapid local service and support
  • Faster parts supply
  • Quickest turnaround time
