Modulo Suspended Platform System

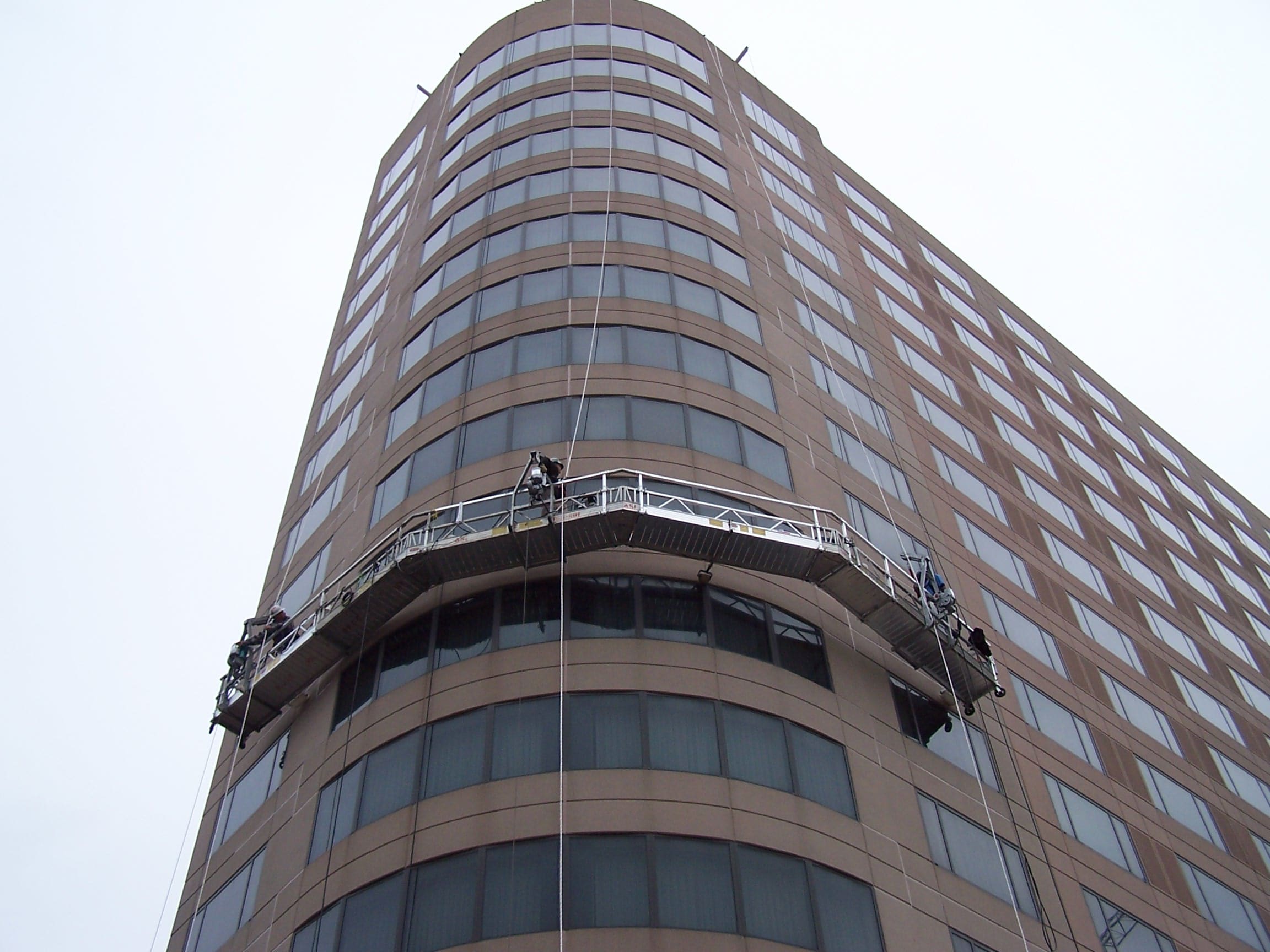

Designed for speed and ease of set-up, our Modulo platforms offer safe, reliable and cost-effective access. Platform segments can be re-configured at different angles for maximized versatility all while maintaining the utmost durability. Experience the flexibility of the Modulo system – allowing you to adjust the platform to almost any building or façade shape.
- Configuration at different angles (20°, 30°, 45°, 60°, 72° and 90°)

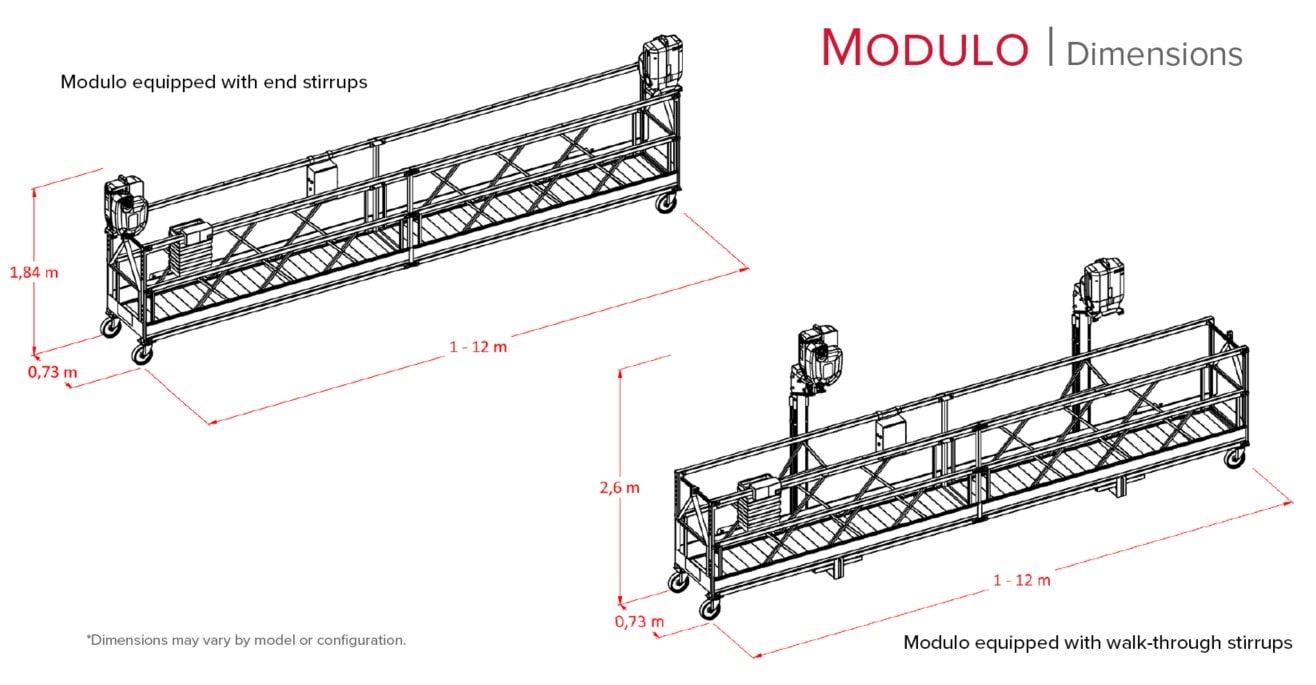

- Platforms with end stirrups from 2 m to 12 m length
- Platforms with walk-through stirrups from 3 m to 16 m length
- Can be fitted with end-stirrups and/or walk-through stirrups
- Robust galvanized steel U-frames and stirrups
- Lightweight aluminum decks, side frames and guard rails
- Quick and hassle-free assembly, with one step “insert and snap” SafeFix pins
Modulo platforms comply with European Standard EN1808 in all standard configurations.
Custom Modulo platforms are also available upon request.
Specifications
| Part Number | Description | Section Sizes & Configuration1 |
|---|---|---|
| MOD-ES02 | 2 m | One 2 m section |
| MOD-ES03 | 3 m | One 3 m section |
| MOD-ES04 | 4 m | 2 m + 2 m |
| MOD-ES05 | 5 m | 2 m + 3 m |
| MOD-ES06 | 6 m | 3 m + 3 m |
| MOD-ES07 | 7 m | 2 m + 3 m + 2 m |
| MOD-ES08 | 8 m | 3 m + 2 m + 3 m |
| MOD-ES09 | 9 m | 3 m + 3 m + 3 m |
| MOD-ES10 | 10 m | 3 m + 2 m + 2 m + 3 m |
| MOD-ES11 | 11 m | 3 m + 3 m + 2 m + 3 m |
| MOD-ES12 | 12 m | 3 m + 3 m + 3 m + 3 m |
Features
- Configurable to different lengths up to 12 m
- Kit includes end stirrups but can be used with walk-through stirrups
- Compliant with European Standard EN1808
Specifications
| Part Number | Description | Section Sizes & Configuration1 |
|---|---|---|
| MOD-WTS03 | 3 m | One 3 m section |
| MOD-WTS04 | 4 m | 2 m + 2 m |
| MOD-WTS05 | 5 m | 2 m + 3 m |
| MOD-WTS06 | 6 m | 3 m + 3 m |
| MOD-WTS07 | 7 m | 2 m + 3 m + 2 m |
| MOD-WTS08 | 8 m | 3 m + 2 m + 3 m |
| MOD-WTS09 | 9 m | 3 m + 3 m + 3 m |
| MOD-WTS10 | 10 m | 3 m + 2 m + 2 m + 3 m |
| MOD-WTS11 | 11 m | 3 m + 3 m + 2 m + 3 m |
| MOD-WTS12 | 12 m | 3 m + 3 m + 3 m + 3 m |
| MOD-WTS13 | 13 m | 3 m + 2 m + 3 m + 2 m + 3 m |
| MOD-WTS14 | 14 m | 3 m + 3 m + 2 m + 3 m + 3 m |
| MOD-WTS15 | 15 m | 3 m + 3 m + 3 m + 3 m + 3 m |
| MOD-WTS16 | 16 m | 3 m + 3 m + 2m + 2 m + 3 m + 3 m |
Features

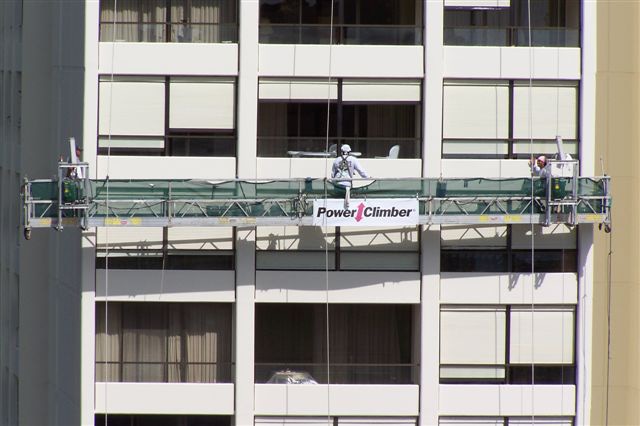

PowerClimber’s Walk-Through stirrups are the only Walk-Through Stirrups that meet all of European Standard EN1808 requirements, including allowing the slack rope safety device on hoists to act as an automatic mechanical tilt limiting safety device. The Power Climber walk-through stirrup is placed on the outside of the platform, providing a clear work area and allowing building corners to be easily accessed.
- Top limit switch activated without any additional mechanism or remote switch required
- Telescopic vertical adjustment to allow the operator to reach as high as possible up the building
- Very lightweight aluminum construction (fully assembled = 25 kg)
- No diverter roller (pulley) at the top to reeve through.
- Components are small enough to fit in a standard passenger lift (largest part is max. 2 m high, weight 15 kg)
- Walk-Through Stirrups can be installed anywhere along the length of platform

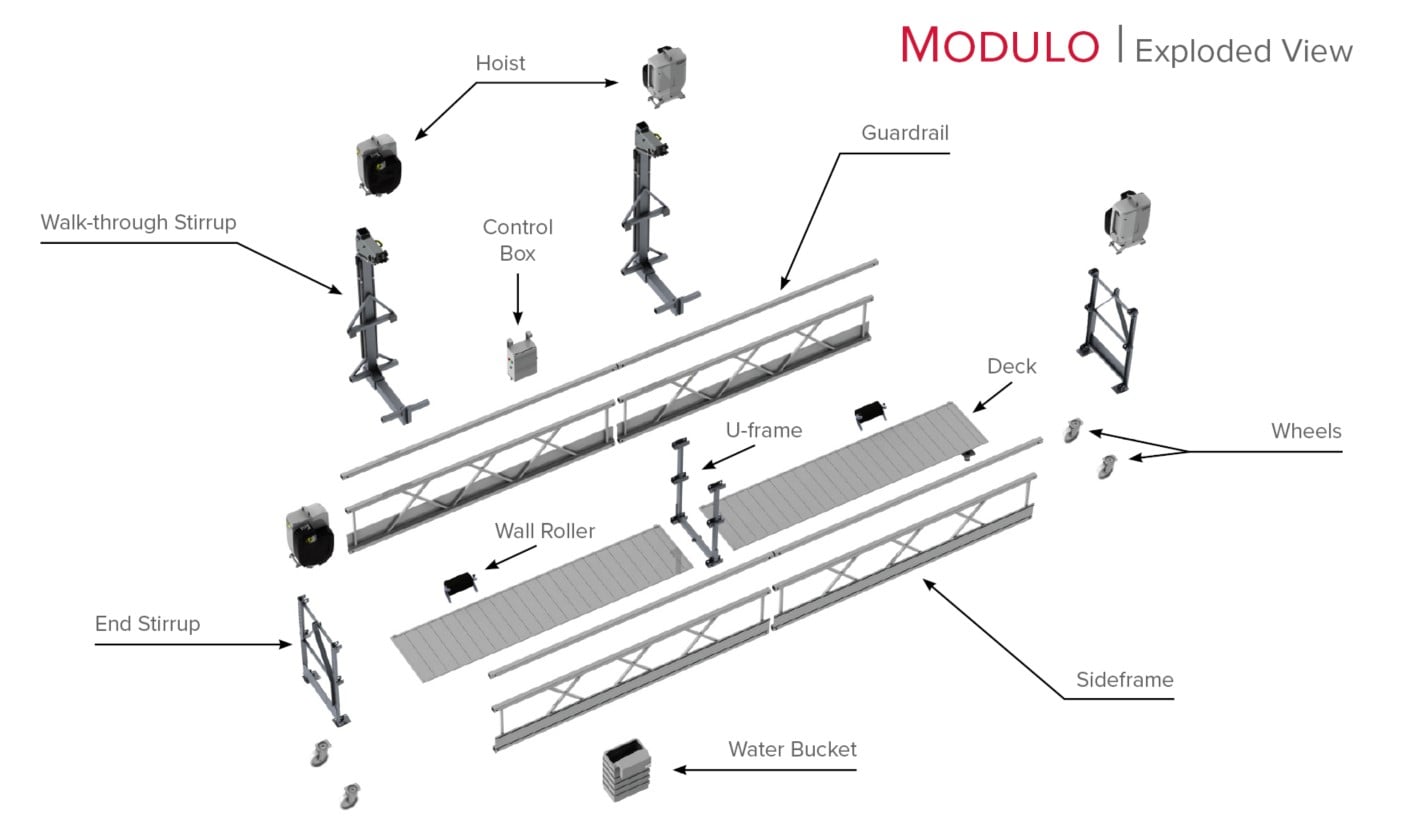

Specifications
| Part Number | Description |
|---|---|
| 61021 | Deck 2 m |
| 61031 | Deck 3 m |
| 61020 | Sideframe 2 m |
| 61030 | Sideframe 3 m |
| 61022 | Guardrail, 2 m |
| 61032 | Guardrail, 3 m |
Specifications
| Part Number | Description |
|---|---|
| 61040 | Titan End Stirrups |
| 61060-SE | Walk-Through Stirrup W/ Guiding Springs |
| 61054 | Corner Section, Fixed 90° |
| 61071 | Corner Section, Adj. 20/30/45/60/72/90° |
| 61041 | U-Frame |
Specifications
| Part Number | Description |
|---|---|
| 61049 | Pin, SafeFix |
| 61056 | Wheel, Caster Assy |
| 61046 | Wall Roller, Soft D150x240 |
| P-6148-55SP | Weight, 10 kg On Steel Wire Rope W/Clamp for Type 8 Rope |
