UpLite Cargo

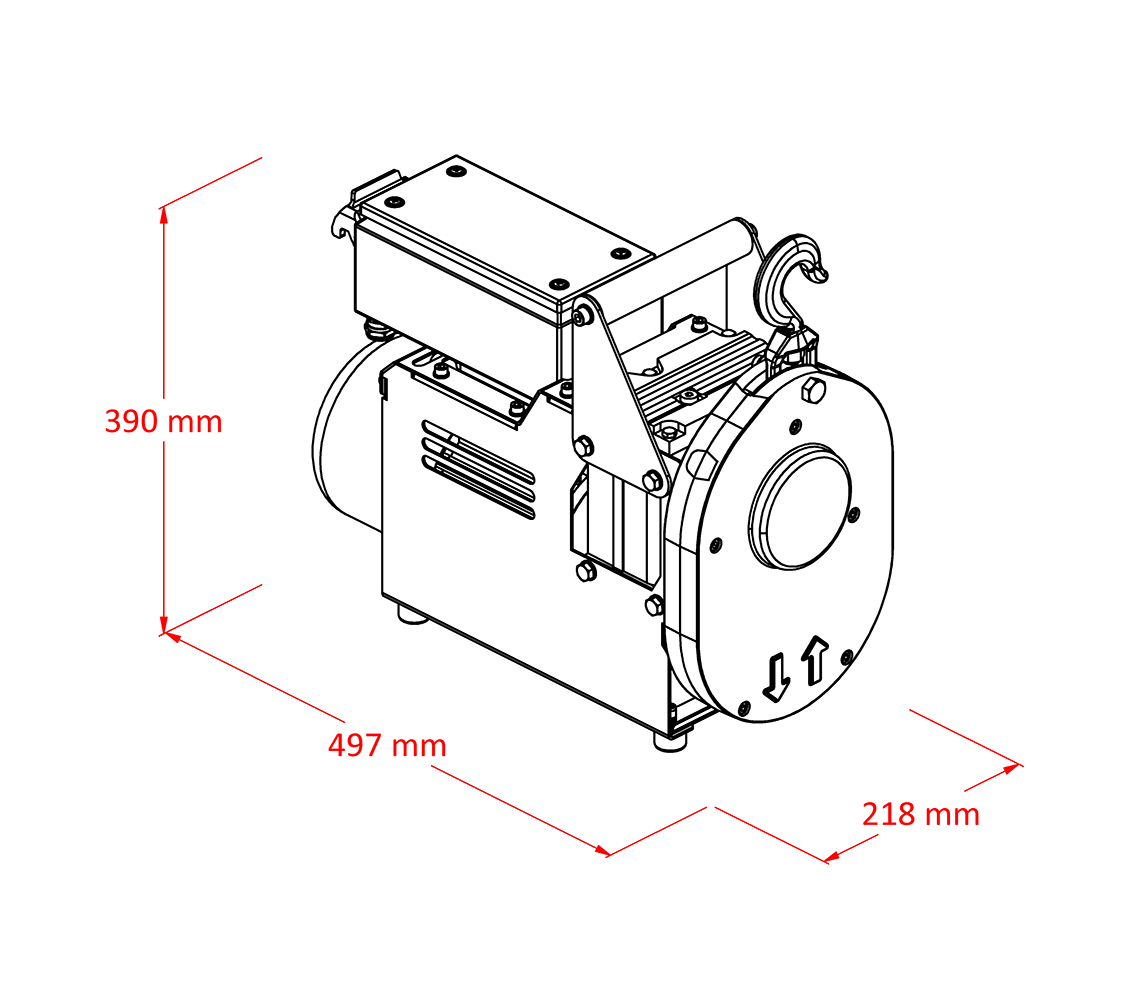

UpLite Cargo Dimensions
UpLite Cargo Material Hoist
The lightweight, compact UpLite Cargo hoist combines transportability with various lifting capacities for cost-effective, productive material lifting on light-duty applications.
Available in a variety of capacities and speeds.
Specifications
| Part Number | Description | Model | Capacity | Travel Speed | Power Supply |
|---|---|---|---|---|---|
| DB10792 | UpLite Cargo 1 | M106 CE30 | 100 kg | 30 m/min | 230V 1Ph 50Hz |
| DB10794 | UpLite Cargo 3 | M306 CE15 | 300 kg | 15 m/min | 230V 1Ph 50Hz |
| DB10795 | UpLite Cargo 5 | M506 CE10 | 500 kg | 10 m/min | 230V 1Ph 50Hz |
| DB10795-03 | UpLite Cargo 5 | M506 CE10 | 500 kg | 10 m/min | 230V 1Ph 60Hz |
Additional Specifications
Wire Rope Diameter: 6.5 mm
Features & Benefits
- Versatile for your specific site needs with payloads of 100, 300, and 500 kg and speeds from 10 to 30 m/min.
- Durable design including robust aluminum case, IP54 motor and junction box.
- Unlimited lifting height due to our continuous traction principle.
- Easily transportable due to light weight and compact design.
- Improved hoist life and performance from detailed quality assurance program for manufactured components.
- EN 1808 certified, and quality made in our ISO 9001, 14001, and 45001-certified factory in Belgium.
Specifications
| Part Number | Description | Notes |
|---|---|---|
| DB10684 | Pendant control extension | Basic extension assembly |
| D10683 | Pendant extension | Additional extension length (sold in 1 m increments) |
| D10329 | Accessories Kit | Consisting of 2 springs and a rope weight |
| D13132 | Tension weight | Rope tension weight for heights over 100 m |
| D10386 | Radio Remote Control |
