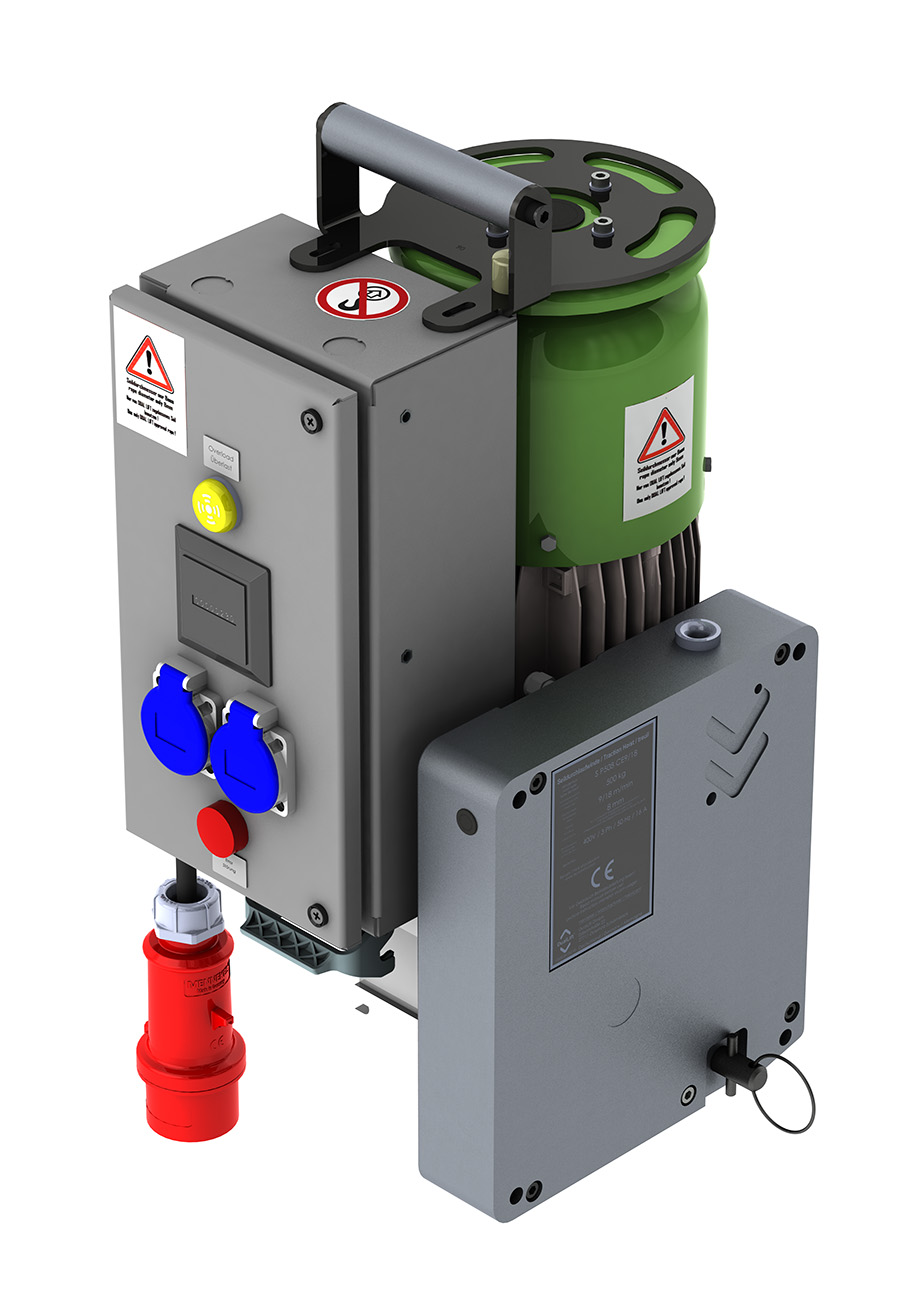

UpPro Cargo S M508 CE 9-18

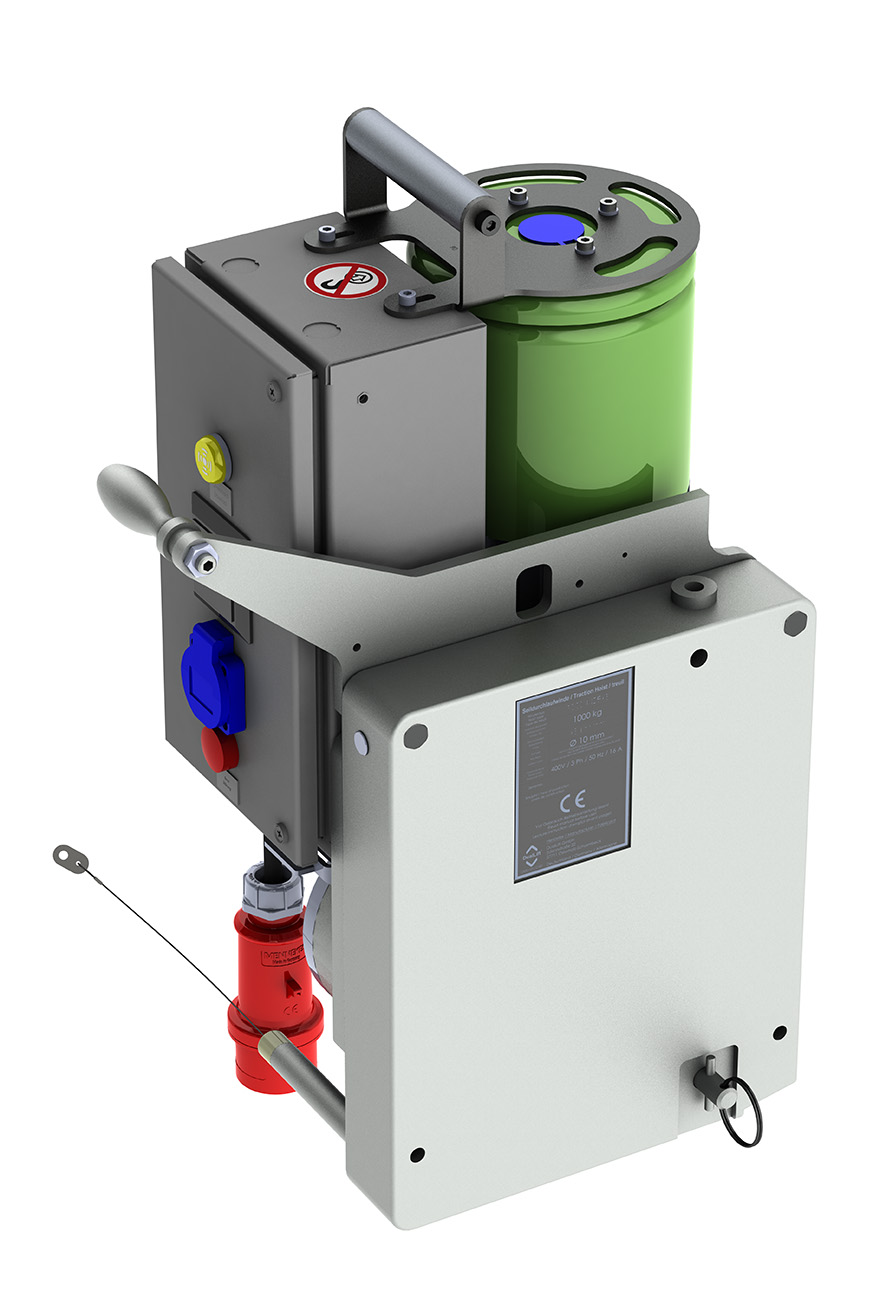

UpPro Cargo M1009 & M1309 CE 9-18
UpPro Cargo Material Hoist
UpPro Cargo hoists are the perfect partner for lifting heavy material, with capacities between 400 kg and 2.500 kg (see UpPro P2514 for 2.500 kg). The UpPro S-series provides a longer gearbox lifetime while reducing noise.
Variable Frequency Drive (VFD) technology provides a non-bouncing soft start of the hoist, allows the hoist to work in multiple speeds, and makes the hoist incredibly tolerant of bad power/low voltage.
Note: UpPro Cargo Options & Accessories can be found here.
Specifications
| Part Number | Model | Travel Speed | Weight | Power Supply |
|---|---|---|---|---|
| DP10929 | S M408 CE9 | 9 mpm | 36 kg | 400V 3Ph 50Hz |
| DP10930 | S M408 CE18 | 18 mpm | 37 kg | 400V 3Ph 50Hz |
| D13273 | S M408 CE9/18 | 9/18 mpm | 42 kg | 400V 3Ph 50Hz |
Additional Specifications
Capacity: 400 kg
Wire Rope Diameter: 8 mm
Note: UpPro Cargo Options & Accessories can be found here.
Specifications
| Part Number | Model | Travel Speed | Weight | Power Supply |
|---|---|---|---|---|
| D13274 | S M508 CE9 | 9 mpm | 36 kg | 400V 3Ph 50Hz |
| D13275 | S M508 CE18 | 18 mpm | 37 kg | 400V 3Ph 50Hz |
| D13276 | S M508 CE9/18 | 9/18 mpm | 42 kg | 400V 3Ph 50Hz |
Additional Specifications
Capacity: 500 kg
Wire Rope Diameter: 8 mm
Note: UpPro Cargo Options & Accessories can be found here.
Specifications
| Part Number | Model | Travel Speed | Weight | Power Supply |
|---|---|---|---|---|
| DB10330 | M608 CE9 | 9 mpm | 45 kg | 400V 3Ph 50Hz |
| D10331 | M608 CE18 | 18 mpm | 52 kg | 400V 3Ph 50Hz |
Additional Specifications
Capacity: 600 kg
Wire Rope Diam: 8 mm
Note: UpPro Cargo Options & Accessories can be found here.
Specifications
| Part Number | Model | Travel Speed | Weight | Power Supply |
|---|---|---|---|---|
| DB10333 | M808 CE9 | 9 mpm | 51 kg | 400V 3Ph 50Hz |
| D11388 | M808 CE9 VFD | 5/9 mpm | 60 kg | 230V 1Ph 50/60Hz VFD |
| D10334 | M808 CE18 | 18 mpm | 55 kg | 400V 3Ph 50Hz |
| DB10335 | M808 CE9/18 | 9/18 mpm | 64 kg | 400V 3Ph 50Hz |
| D12706 | M808 CE18 VFD | 5/9/12/18 mpm | 65 kg | 230V 3Ph 50/60Hz VFD |
| D12707 | M808 CE18 VFD | 5/9/12/18 mpm | 65 kg | 400V 3Ph 50/60Hz VFD |
Additional Specifications
Capacity: 800 kg
Wire Rope Diameter: 8 mm
Note: UpPro Cargo Options & Accessories can be found here.
Specifications
| Part Number | Model | Travel Speed | Weight | Power Supply |
|---|---|---|---|---|
| DB10336 | M1009 CE9 | 9 mpm | 51 kg | 400V 3Ph 50Hz |
| DB11386 | M1009 CE9 VFD | 5/9 mpm | 60 kg | 230V 1Ph 50/60Hz VFD |
| DB10337 | M1009 CE18 | 18 mpm | 55 kg | 400V 3Ph 50Hz |
| DB10338 | M1009 CE9/18 | 9/18 mpm | 64 kg | 400V 3Ph 50Hz |
| D12708 | M1009 CE18 VFD | 5/9/12/18 mpm | 65 kg | 230V 3Ph 50/60Hz VFD |
| D12709 | M1009 CE18 VFD | 5/9/12/18 mpm | 65 kg | 400V 3Ph 50/60Hz VFD |
Additional Specifications
Capacity: 980 kg
Wire Rope Diameter: 9 mm
Note: UpPro Cargo Options & Accessories can be found here.
Specifications
| Part Number | Model | Travel Speed | Weight | Power Supply |
|---|---|---|---|---|
| D10800 | M1310 CE9/18 | 9/18 mpm | 76 kg | 400V 3Ph 50Hz |
Additional Specifications
Capacity: 1.300 kg
Wire Rope Diameter: 10 mm
Note: UpPro Cargo Options & Accessories can be found here.
Features & Benefits
- Easy and ergonomic operation with self-reeving traction.
- Proven, reliable performance in demanding environments and applications.
- EN 1808 certified, and quality made in our ISO 9001, 14001, and 45001-certified factory in Belgium.
- Customizable to meet your unique applications with optional upper limit switch, remote controls, etc. (see UpPro Cargo Options & Accessories).
- VFD model offers additional benefits:
- Works with poor quality power supply condition
- The starting current is lower bringing great advantage in case the hoist is powered by a generator
- Non-bouncing, soft start of the hoist
- Multiple travel speeds
