Home > Products > UpPro/UpPro Cargo Options & Accessories
, ,

UpPro/UpPro Cargo Options & Accessories

Power Climber offers a wide range of options and accessories for use with UpPro personnel-rated hoists, including adapters, pulleys, limit switches, central control boxes, and more.

Contact Power Climber to ensure you have the correct options or accessories for use with your model hoist.

Note:

  • Accessories for the UpPro P2514 hoist can be found here.
  • Accessories for the UpLite Cargo hoist can be found here.

View Product Documentation

    Electrical Options

    Specifications

    Part NumberItem DescriptionCompatible with
    UpProUpPro Cargo
    D12514Central control box for 400V 3Ph 50Hz hoists. Allows two hoists to be operated in unison.
    DB10386Radio remote control for P508-P1010 or UpLite Cargo material hoist. For use with hoists connected to a control box.

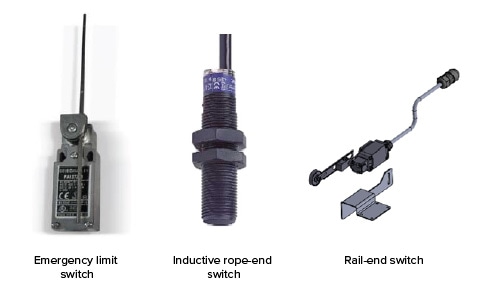

    DB10387Emergency limit switch with 3 m cable and Hirschmann-Plug according to EN1808.
    DB10388Emergency limit switch at hoist (Upper Fixing) directly mounted at hoist.
    D13201Upper limit switch. For use with SP408/508 hoists.
    DB10944Inductive Rope end switch integrated in hoist. For use with all UpPro P-models except P2514.
    DB13207Inductive Rope end switch integrated in hoist. For use with SP408/508 hoists.
    DB10962Rail end switch
    D13480-01Rail end switch box (6 pins – plug & play between hoist and pendant control). Requires two rail end switches (BG-10962).
    D13480Rail end switch box (10 pins – plug & play between hoist and pendant control). Requires two rail end switches (BG-10962).
    Mechanical Options

    Specifications

    Part NumberItem DescriptionCompatible with
    UpProUpPro Cargo
    DP10389Emergency operation at top of engine and bottom of hoist with handwheel.
    D10390Brake lever extension of emergency brake lever up to middle of gearbox
    DB10409Rope guide spring, re-directing the load-free rope up to 180 degree, max. 100 m, 10 mm rope
    DB10409-1Rope guide spring, re-directing the load-free rope up to 180 degree, max. 100 m, 10 mm rope for VFD hoists
    DB11582-01Rope outlet protection spring. For use with SP408/508 hoists.
    DB10553Additional Handle at Hoist with hook for Transportation

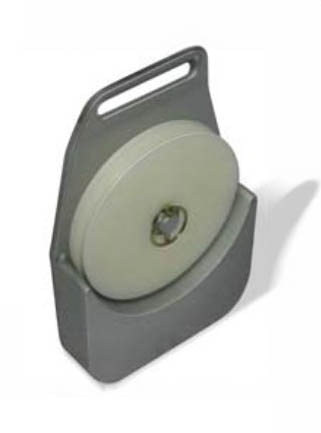

    D10554Roller tension weight
    D10902Frame for mobile hoist could be used as mobile unit, also with reeler.
    D12067OSL rope tension weight (8 kg)
    D12799H-beam for man-riding
    D12081H Beam for material transport
    D13413-01Chain hoists 1 tn – 3 m chain
    D13413Chain hoists 1 tn – 6 m chain
    D13414Chain hoists 2 tn – 3 m chain
    Adapters

    Specifications

    Part NumberItem DescriptionCompatible with
    UpProUpPro Cargo
    DB10391Adapter with shackle Fixing on bottom of hoist payload 1.000 kg
    DB10439-B01Adapter with eye-hook Fixing on bottom of hoist payload 1.000 kg
    DB10439Adapter with eye-hook Fixing on bottom of hoist payload 1.000 kg
    DP10560Fixing Ground Adapter for P508-P1010
    D10714Wall Fixing ground Adapter for P508-P1010
    DB10666Adapter for elevator construction. Set of two brackets for mounting on elevator cabin in 2:1 reeving.
    DB10880Adapter for mounting UpSafe on UpPro hoist
    D10868-A01Adapter UpPro-Wurtec False Car
    Pulleys

    Specifications

    Part NumberItem DescriptionCompatible with
    UpProUpPro Cargo
    DB10924-04Pulley 3,0 t with one roller fixing with swivel-hook
    DB10924-B02Pulley 3,0 t with one roller fixing with swivel-hook – with safety rope 2,5 m
    DB10923-B01Pulley 3,0 t with 2 roller fixing with swivel-hook with safety rope 2,5 m

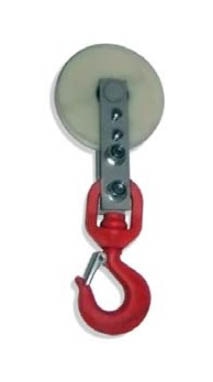

    DB10720-07Pulley 2,0 t with one roller weight optimized
    DB10720Pulley 2,0 t with one roller weight optimized – with safety rope 2,5 m
    DB11625-B03Deflection pulley for upside down
    D10897-2Telescopic bar for installation of the pulley at top of the shaft
    Contact Power Climber to ensure you have the correct pulley configuration for your needs.
