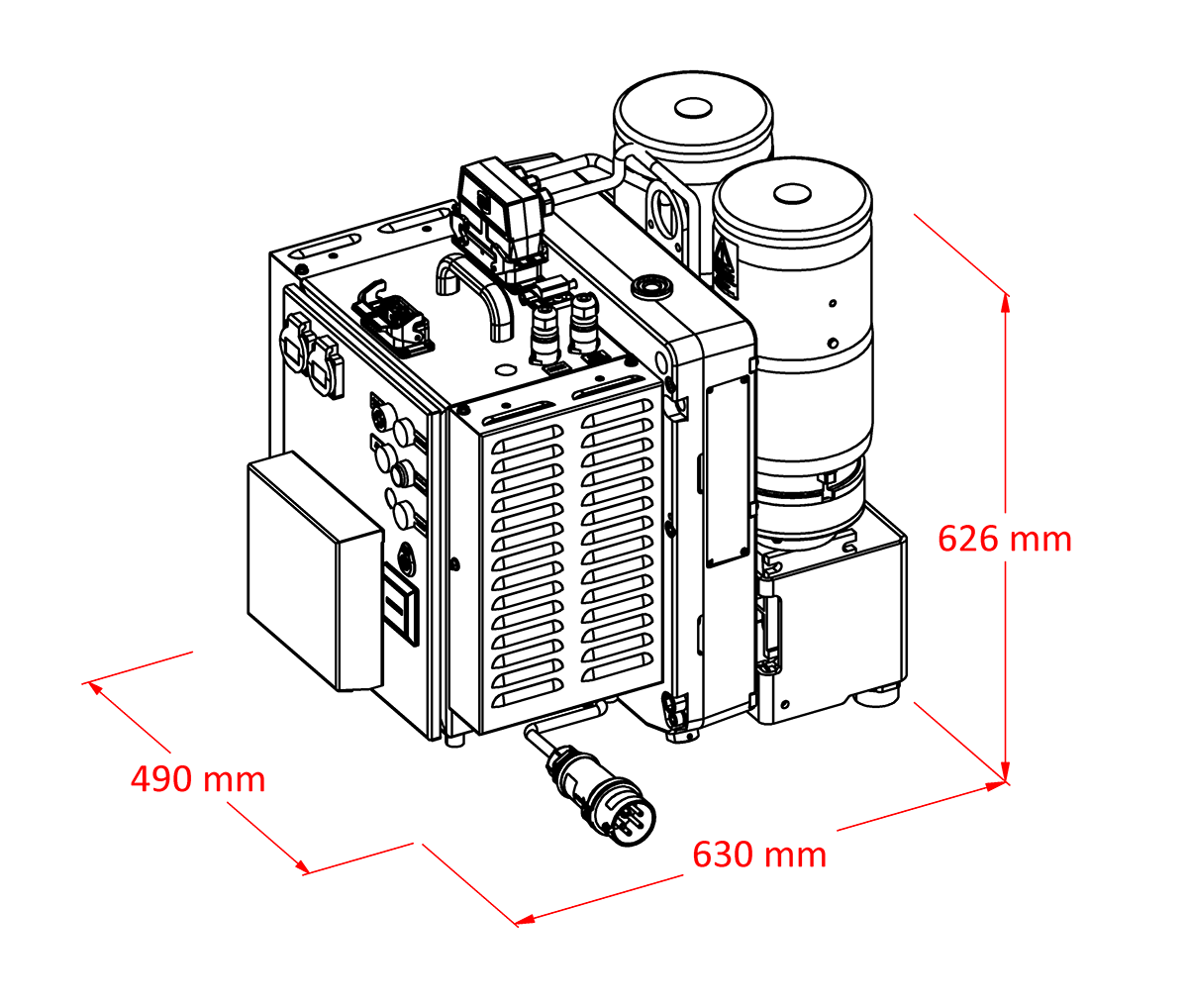

UpPro P2514 Dimensions
UpPro P2514 Hoist (2.500 kg)
The UpPro P2514 is Power Climber’s highest capacity man-rated hoist. With CE approval, a 2.500 kg capacity and speeds up to 18 m/min, the UpPro P2514 maximizes your productivity in elevator installation and other high-capacity applications.
Variable Frequency Drive (VFD) technology provides a non-bouncing soft start of the hoist, allows the hoist to work in multiple speeds, and makes the hoist incredibly tolerant of bad power/low voltage.
Specifications
| Part Number | Model | Travel Speed | Power Supply | Weight |
|---|---|---|---|---|
| D12772 | P2514 VFD4 – 400 | 5/9/12/18 m/min | 400V 3Ph 50/60Hz VFD | 165 kg |
Additional Specifications
- Capacity: 2.500 kg
- Wire Rope Diameter: 14 mm
Benefits
- High lifting capacity of 2.500 kg.
- Multi-speed control up to 18 m/min maximizes productivity based on load.
- Optimal power management and soft starts with variable frequency drive.
- Industry-best power range, from 340 to 440 line voltage, to eliminate most power supply issues.
- Customizable mounting options for various car sling or platform configurations.
- Ergonomic handling and flexible use with a detachable control unit.
- Optional Overspeed Safety Lock (OSL) available.
- Optional cart for easy transportation of the hoist.
Specifications
| Part Number | Description |
|---|---|
| D12982 | Radio remote control for P2514 |
| D12929 | Tension Weight 2:1 |
| D12821 | Pulley 5.0t with one roller |
| D12889 | Upper Limit Switch |
| D12890 | Rope outlet protection spring |
| D12222.05 | Hoist adapter |
