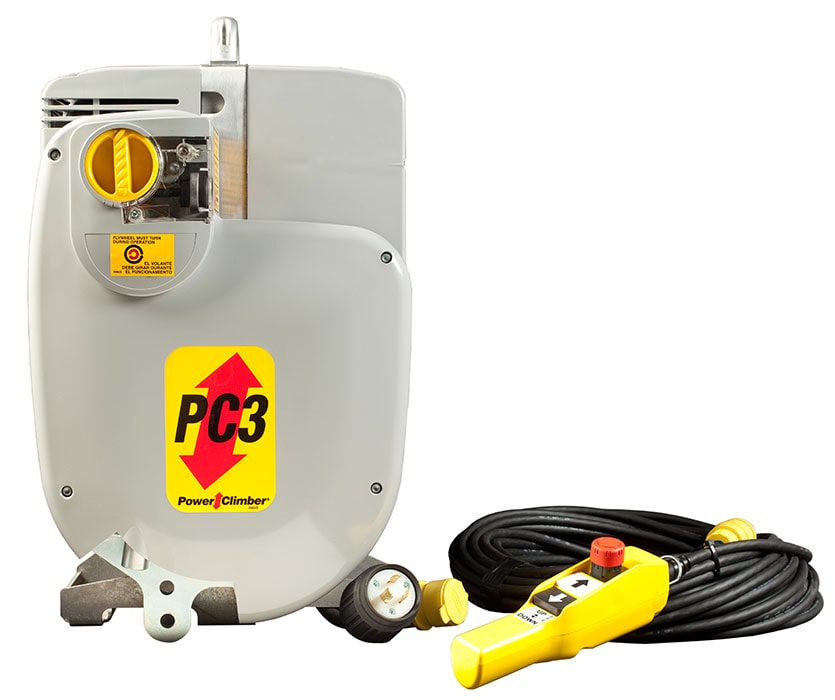

PC3 Electric Series Traction Hoists
Compliant with North American Standards
Safer. Smarter. Stronger.
Power Climber’s PC3 series hoists are a customer-inspired design offering unique features that make it one of the most durable and best performing hoists on the market.
With a proven track record, integrated safeties, industry-leading serviceability, and a lower total cost of ownership, the PC3 offers the best lifetime value and is the preferred choice for fleet owners or rental operators across North America.
The PC3 Series traction hoists feature a gross load capacity of up to 1,000 lb or 1,500 lb and an operating range of 208V +10%/-15%, Single Phase or +10%/-10% Three Phase.
Specifications
| Part Number | Phase | Voltage | Overspeed Brake | Overload1 | Slack Wire Rope Brake | Top Limit | Weight |
|---|---|---|---|---|---|---|---|
| 9000 | 1 | 208 |  | 101 lb (45.8 kg) | |||
| 9001 | 1 | 208 | | | 105 lb (47.6 kg) | ||
| 9002 | 1 | 208 | | | | | 108 lb (49 kg) |
| 9003 | 1 | 208 | | | 103 lb (46.7 kg) | ||
| 9004 | 1 | 208 | | | | 107 lb (48.5 kg) | |
| 9040 | 1 | 110 | | 99 lb (44.9 kg) | |||
| 9041 | 1 | 110 | | | 103 lb (46.7 kg) | ||
| 9043 | 1 | 110 | | | 101 lb (45.8 kg) | ||
| 9044 | 1 | 110 | | | | 105 lb (47.6 kg) | |
| 9032-2 | 3 | 208 | | | | | 100 lb (45.4 kg) |
Additional Specifications
- Gross Load Capacity: 1,000 lb (453.6 kg)
- Voltage:
- Single Phase: 208 V +10%/-15%
- Single Phase: 110 V +10%/-15%
- Three Phase: 208 V +10%/-10%
- Dimensions: 14 x 12 x 24 in (356 x 305 x 610 mm)
- Travel Speed:
- 208 V: 35 ft/min (10.7 m/min)
- 110 V: >15 ft/min (4.6 m/min)
- Hoist Construction: Aluminum, Steel and Engineered Polymer
- Wire Rope Diameter: 5/16 in, 8 mm or 8.4 mm
- Wire Rope Construction: 5 x 26 or 6 x 19 IWRC or FC Right Regular Lay IPS or EIPS Preformed, Galvanized or Bright
Note: The PC3 1500 hoist is not approved for use in Canada due to the 10:1 wire rope safety factor required. If you need a 1,500 lb capacity hoist and are located in Canada, please contact Power Climber for assistance.
| Part Number | Gross Load Capacity | Phase | Overspeed Brake | Overload | Slack Wire Rope Brake | Top Limit | Weight |
|---|---|---|---|---|---|---|---|
| 9010 | 1,500 lb (680.4 kg) | 1 | | 104 lb (47.2 kg) | |||
| 9011 | 1,500 lb (680.4 kg) | 1 | | | 108 lb (49 kg) | ||
| 9012 | 1,500 lb (680.4 kg) | 1 | | | | | 111 lb (50.3 kg) |
| 9013 | 1,500 lb (680.4 kg) | 1 | | | 106 lb (48.1 kg) | ||
| 9014 | 1,500 lb (680.4 kg) | 1 | | | | 110 lb (49.9 kg) | |
| 9030 | 1,500 lb (680.4 kg) | 3 | | 105 lb (47.6 kg) | |||
| 9031 | 1,500 lb (680.4 kg) | 3 | | | 109 lb (49.4 kg) | ||
| 9032 | 1,500 lb (680.4 kg) | 3 | | | | | 112 lb (50.8 kg) |
| 9032-11 | 1,250 lb (567 kg) | 3 | | | | | 112 lb (50.8 kg) |
| 9032-31 | 1,150 lb (521.6 kg) | 3 | | | | | 112 lb (50.8 kg) |
| 9033 | 1,500 lb (680.4 kg) | 3 | | | 107 lb (48.5 kg) | ||
| 9034 | 1,500 lb (680.4 kg) | 3 | | | | 111 lb (50.3 kg) | |
| 9034-11 | 1,250 lb (567 kg) | 3 | | | | 110 lb (49.9 kg) |
Additional Specifications
- Voltage:
- Single Phase: 208 V +10%/-15%
- Three Phase: 208 V +10%/-10%
- Dimensions: 14 x 12 x 24 in (356 x 305 x 610 mm)
- Travel Speed: 35 ft/min (10.7 m/min)
- Hoist Construction: Aluminum, Steel and Engineered Polymer
- Wire Rope Diameter: 5/16 in, 8 mm or 8.4 mm
- Wire Rope Construction: 5 x 26 or 6 x 19 IWRC or FC Right Regular Lay IPS or EIPS Preformed, Galvanized or Bright
Talk to a Specialist
"*" indicates required fields
Benefits
Improves Bottom Line
- Easy to operate
- Longer service life
- Lowest annual service cost
- Lowest cost to inventory parts
- Fewer voltage problems
- Workers of all skill levels can troubleshoot and fix most problems
Robust and Proven Design
- Proven load-dependent traction system
- Lowest probability for rope jams
- Superior electrical design makes troubleshooting and repairs fast and easy
- Mechanical components carry minimum 105 operating hour life with regular service
- Removable motherboard with electrical components for quick, inexpensive power-induced repairs
- Change the motherboard out to solve an electrical issue in less than 5 minutes
- Longer service life between replacements
- Less prone to breaking
Made in the USA
- Rapid local service and support
- Faster parts supply
- Quickest turnaround time
Features
- Clean, contained design
- Broad operating range: 177-228 run volts
- Load sensitive traction
- Mounted electrical components on motherboard
- Designed for service efficiency
- Built-in overspeed brake
- Remote ready
- Easy inspection of internal wear components
- Quick, easy and simple hoist overhaul repair takes less than an hour
Certifications
Operator Manual Access
Easy to locate on the hoist
Remote Ready
Robust remote control system
Built-in Overspeed Brake
Easy to identify overspeed activation for troubleshooting
Easy Inspection of Internal Wear Components
Quick, easy, and simple hoist overhaul repair takes less than an hour
Three Easy Steps
Solve electrical issues in less than five minutes by changing the motherboard
