Kliper BMU
Kliper BMU Dimensions

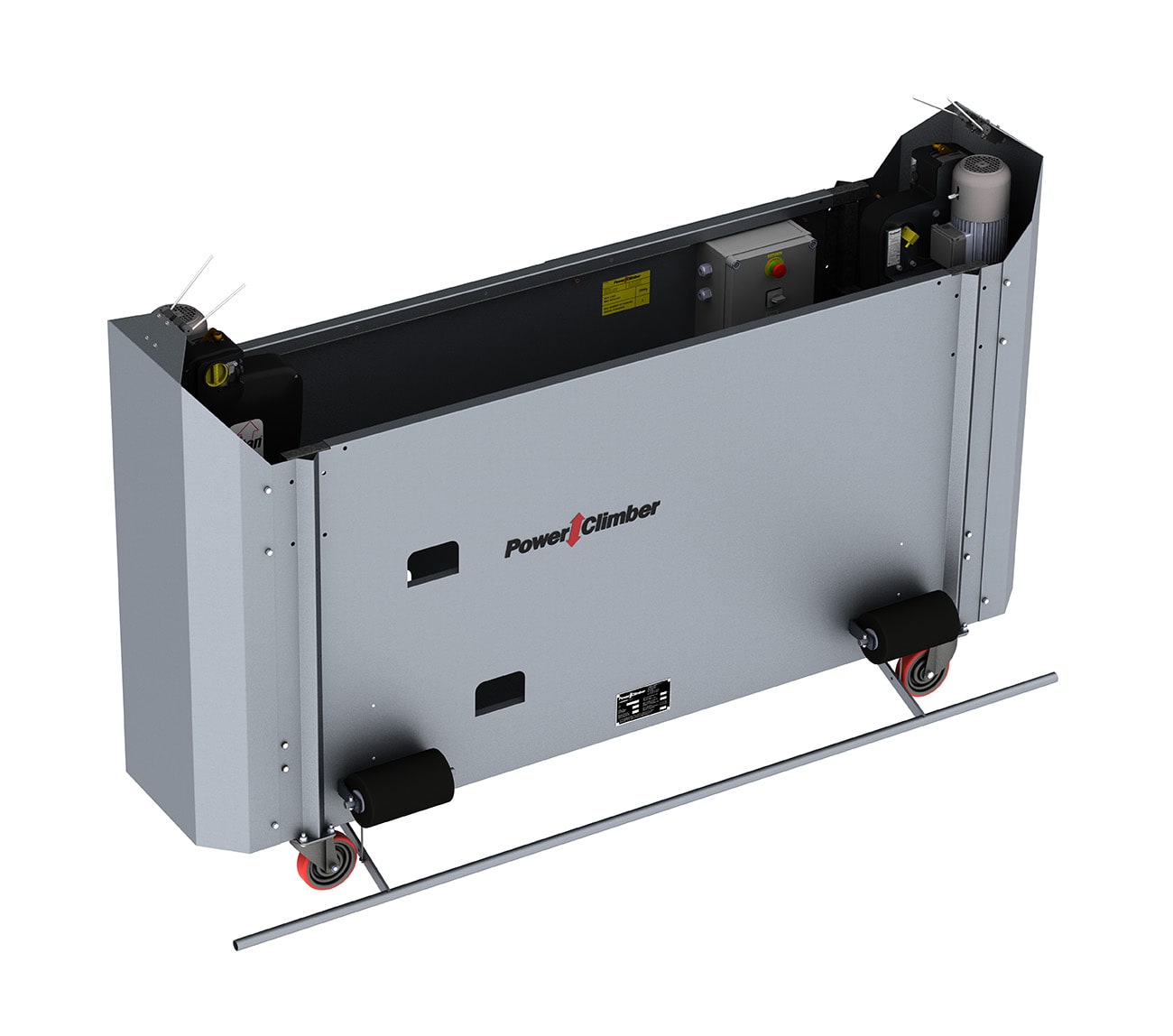

Kliper BMU (alt view)
Kliper PI Cradle
Power Climber’s Kliper PI Cradle is a safe, reliable and practical permanent installation maintenance platform, available with a wide range of custom options to meet your specific needs.
Featuring lightweight, all-around solid plate aluminum cladding (including around the wire winders), the Kliper is also powered by our industry-leading Titan PI traction Hoist.
Power Climber’s permanent access systems meet or exceed the special requirements set by European Standard EN1808 for permanently installed building maintenance units.
Specifications
| Lifting Height | ≤ 125 m (standard capacity)3 | ||
|---|---|---|---|
| Suspension rope Center Distance (CD)1 | 1.100 mm (MIN) | 2.185 mm (MAX, standard) | 1.100 mm ≤ CD ≤ 2.185 mm |
| Self-weight2 | 228 kg | 251 kg | (205 + CD x 0,021) kg |
| Safe working load/Rated Load | CD ≤ 1.250 mm: 120 kg or 1 person CD > 1.250 mm: 250 kg or 2 persons | ||
| Hoisting speed | approx. 8 mpm | ||
| Power supply options | 3 phase 400V +E (+N) / 50 Hz 1 phase 230V +E / 50 Hz | ||
| Suspension and safety rope | ~ 8 mm | ||
2 Self-weight in standard form, without steel wire ropes or power supply cable. Add 1,05 kg/m lifting height for steel wire ropes and 0,30 kg/m lifting height for the standard 5×2,5 mm² supply cable.
3 Higher lifting heights available upon request. Contact Power Climber for more information.
Key Features
- Lightweight aluminum construction.
- All-around solid plate aluminum cladding, including around the wire winders.
- Cable bin to store electrical supply cable.
- Twin-drum wire winders up to 125 m.
- Internal cover over wire winder.
- Low-noise castor wheels ~160 mm.
- Non-marking soft wall rollers (10).
- CE-marked safety harness attachment points.
- Foot-steps on both sides for in/out.
- Top limit and ultimate top limit switch.
- Mechanical anti-tilt device.
- Bottom limit trip bar.
Titan PI Traction Hoist:
- Electro-mechanical overload detection device in series.
- Electro-mechanical service brake.
- ‘No Power’ emergency descent.
- Thermal protection in series.
- Includes slack rope and overspeed safety device.
Kliper Options
| Cable bin |
| Single or double monorail trolley control |
| Interior and exterior RAL powder coated painting |
| Overspeed Safety Device (to add to Slack Rope Safety) |
| Emergency down/up radio remote control |
| End of rope safety device |
| “No striker plate” top limit and ultimate top limit switch |
| Telescopic rollers |
| Double bottom limit trip bar |
| Wall rollers for both sides |
| Rubber bumper strip |
| Landing buffers |
| Water container |
| Fire extinguisher |
| Power outlet for tools 230V / 1ph or 400V / 3ph |
| Other power supplies available on request |
| Reinforced sea freight packaging |
