Fold-up work cage

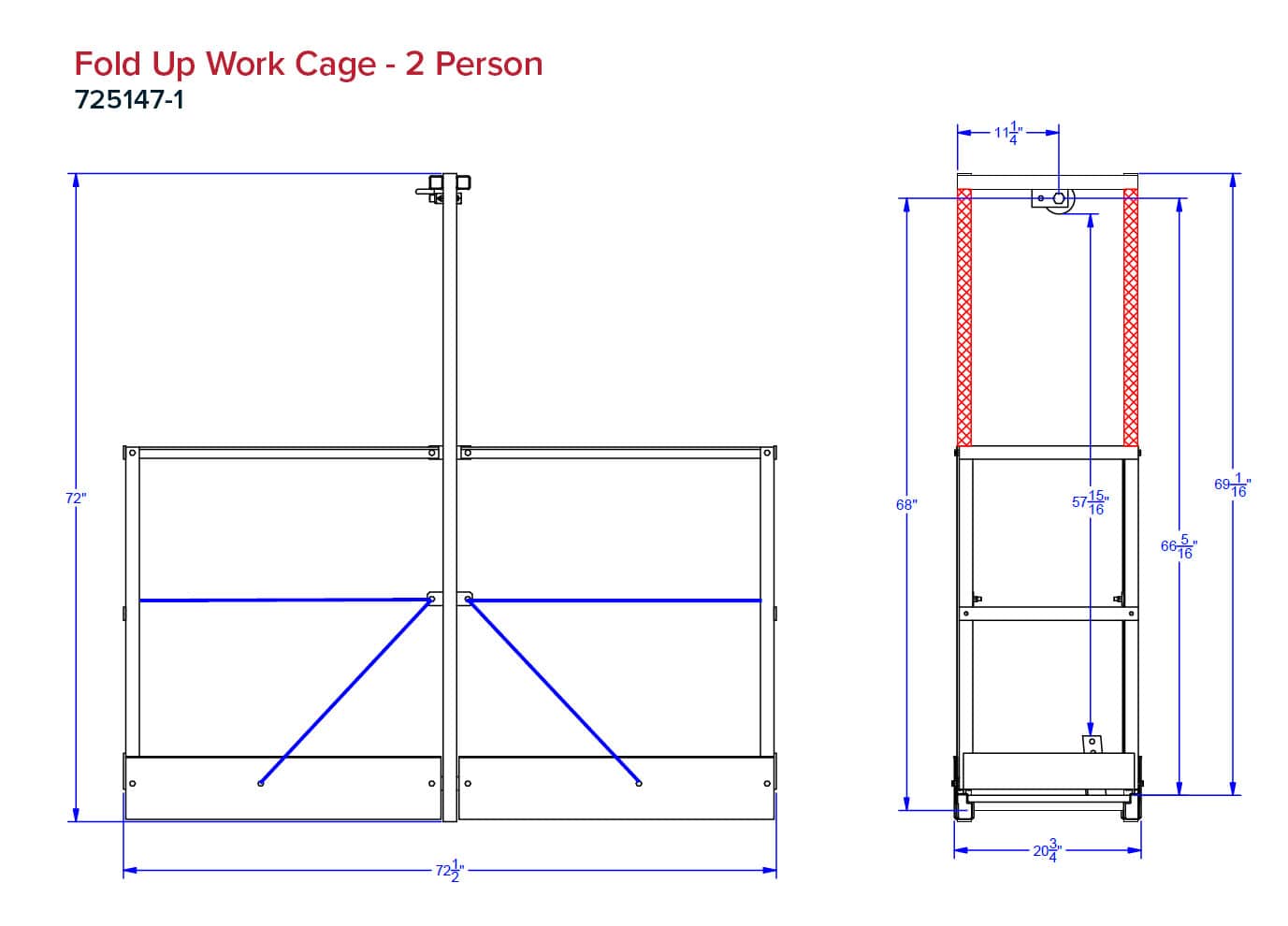

Fold-up work cage dimensions
Work Cages
Compliant with North American Standards
6 ft (1.8 m) Internal Universal Mount Work Cage
- Steel and aluminum construction for dual benefits of strength and lighter weight.
- Fold-up work cage, when folded, can pass through a 24 in (610 mm) diameter opening or through a 13 x 20 in (330 x 508 mm) rectangular opening
- Compatible with most brands of traction hoist.
Specifications
| Part Number | Description | Weight | Fully Expanded Dimensions | Collapsed Dimensions | Motor Mount | Mount Dimensions |
|---|---|---|---|---|---|---|
| 725147-1 | Fold-up Work Cage | 126 lb (57.2 kg) | 72 x 20 3/4 x 72 1/2 in. (1829 x 527 x 1842 mm) | 13 3/4 x 20 3/4 x 75 3/4 in. (349 x 527 x 1924 mm) | Internal | 6 ft (1.83 m) |
Additional Specifications
- Gross Load Capacity: 1000 lb (453.6 kg)
- Maximum Live Load: 500lb (226.8 kg)
Key Features
- Lightweight
- Compact
- Easy assembly
- Powder-coated to prevent rust and lengthen product life
- Folds up for easy storage
- Mesh floors allow water to escape rather than collect in the cage-eliminates possibility of warping and reduces potential electrical problems
- Includes roller bumpers and attached tail boards that do not need to be disassembled before storage
- Passes through a 24 in (610 mm) diameter opening or through a 13 x 20 in (330 x 508 mm) rectangular opening
- The toe boards are permanently attached.
- The gooseneck has a roller system for the wire rope guide.
- The rollers are attached with mounted brackets instead of U-bolts.
