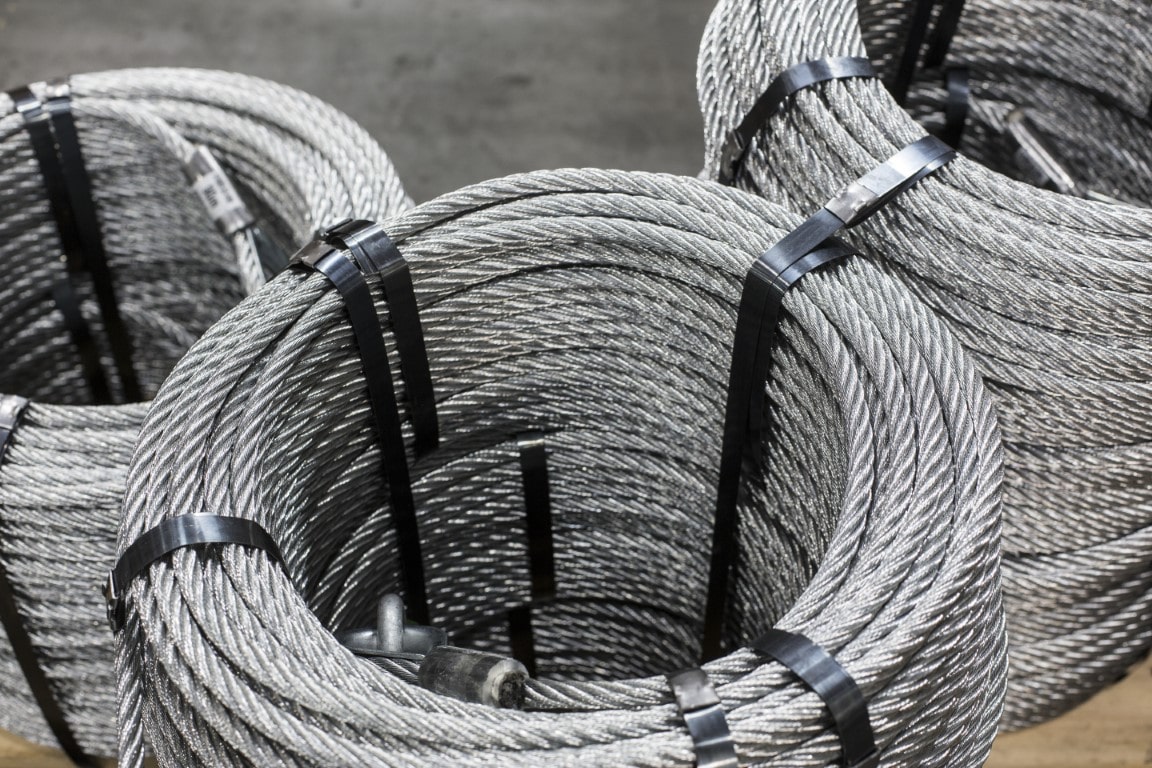

Steel Wire Rope
Power Climber offers wire rope compatible with each of our Titan, UpPro, and UpLite model hoists. Raw wire rope is available in fixed and custom lengths, as well as in finished assemblies.
Contact Power Climber to ensure you have the correct wire rope for your needs.
Specifications
Part Number 1 | Description 2 | Compatible With | Diameter | Max. Load Capacity | |
---|---|---|---|---|---|
Personnel Hoists | Cargo Hoists | ||||
DB13316-XXX | Steel wire rope on a reel with thimble and hook for guided loads. | UpLite Cargo | 6,5 mm | N/A | 500 kg |
DB10394-XXX | Steel wire rope on a reel with thimble and hook for guided loads. | UpPro 4S, 5S, and 6 | 8,4 mm | 600 kg | 800 kg |
DB10396-XXX | Steel wire rope on a reel with thimble and hook for guided loads. | UpPro 8 | 9 mm | 800 kg | 980 kg |
DB13368-XXX | Steel wire rope on a reel with thimble and hook for guided loads. | UpPro 10 | 10,2 mm | 1.000 kg | 1.300 kg |
DB13387-XXX | Steel wire rope on a reel with thimble and hook for guided loads. | UpPro P2514 | 14 mm | 2.500 kg | 2.500 kg |
2 All steel wire ropes are also available in other configurations, such as without reel or with the hook inside or outside the reel. Contact Power Climber for more information.
Specifications
Part Number1 | Description | Diameter | Load Capacity |
---|---|---|---|
91371-XXX | Steel wire rope with thimble. | ~8 mm | For loads up to 650 kg (CE) or 700 kg |
91372-XXX | Steel wire rope with bullet ends on both rope ends. | ||
91373-XXX | Steel wire rope with thimble and 2,5 t hook. | ||
37400 | Steel wire rope without accessories, on reel. |
