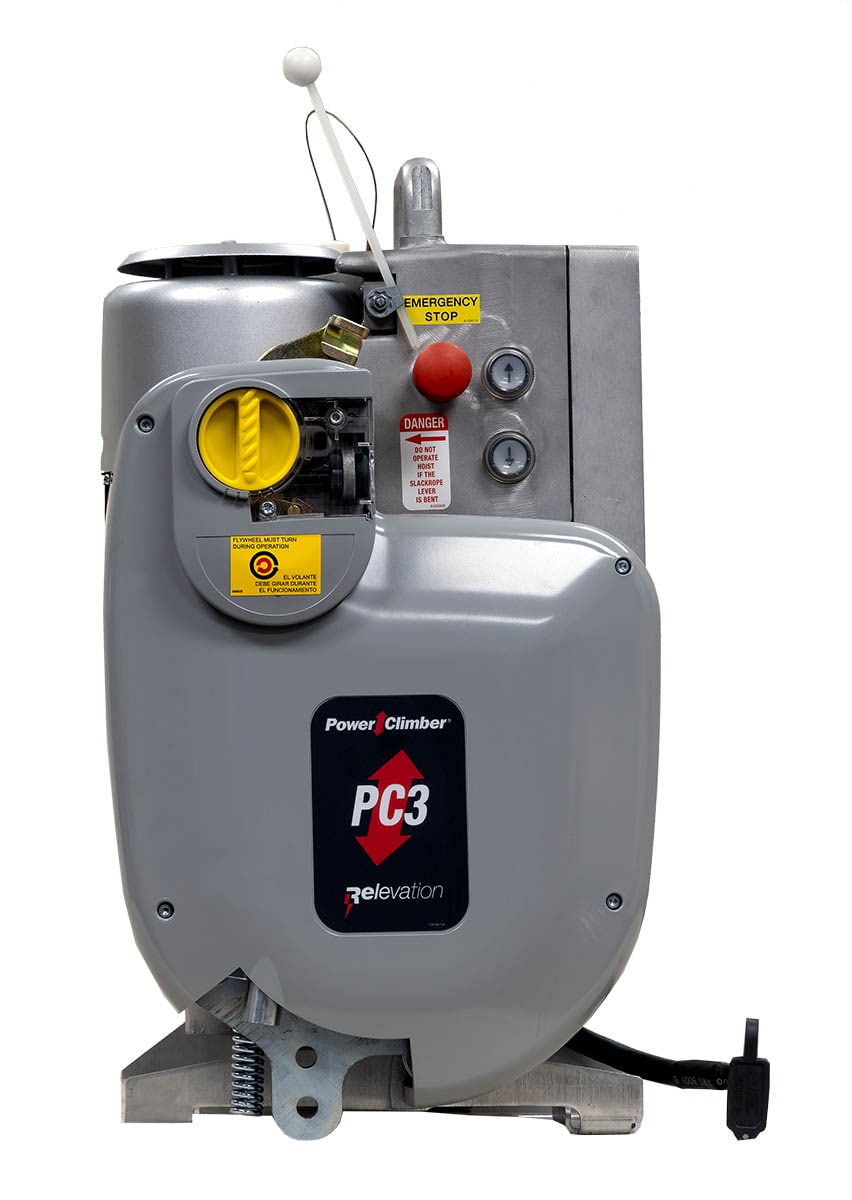

PC3 Relevation Hoist
Compliant with North American Standards
A REVOLUTION in traction hoist technology.
Power Climber’s PC3 Relevation hoist is the only battery-powered traction hoist on the market. With a 1000 lb capacity and personnel rating, the PC3 Relevation lets you work at elevation safely, reliably, anywhere you need it.
Specifications
| Part Number | Slack Rope | Overload | Top Limit |
|---|---|---|---|
| 724188-1 |  | | |
| 724189-1 | | ||
| 724190-1 | | |
PC3 Relevation Accessories
| Part Number | Description |
|---|---|
| 723873-1 | Relevation Battery Charger |
| 723872-1 | Relevation Battery |
Additional Specifications
- Working Load Limit: 1000 lb (454 kg)
- Voltage (charger): 110/220V
- Dimensions:
- Hoist: 14 x 12 x 24 in. (356 x 305 x 610 mm)
- Battery: 13 x 11 x 14.15 in. (330 x 279 x 359.4 mm)
- Weight:
- Hoist: 127 lb (57.6 kg)
- Battery: 38 lb (17.2 kg)
- Travel Speed: 35 ft/min (10.7 m/min)
- Hoist Construction: Aluminum, Steel and Engineered Polymer
- Wire Rope Diameter: 5/16 in, 8 mm or 8.4 mm
- Wire Rope Specification: 5×26, 6×19, or 6×31; IWRC (Independent Wire Rope Core) or FC (Fiber Core); Right Regular Lay, IPS (improved Plow Steel); Preformed; Galvanized or Bright
Note: User must verify that the wire rope meets or exceeds applicable codes for breaking strength safety factor. USA temporary applications require a 6:1 safety ratio.
Talk to a Specialist
"*" indicates required fields
Benefits
- No power cables
- No need to call an electrician or rent a generator
- No loss of productivity due to unreliable power
- Minimized service calls and reduced maintenance
Who will benefit? Jobsites…
- with unstable or inadequate power
- with no available power supply
- with uncommon power (110V, 400V) or requiring a certified electrician to use
- where power cables are inconvenient, difficult to manage, or not allowed by the owner
Hoist Features
Enhanced Capabilities
- Soft start & soft stop
- Quiet operation
- Best-in-class operating temperature range
- Consistent motor speeds regardless of battery charge level
- Display for battery charge and hour meter
Robust & Durable Construction
- Cast control box, IP64-rated
- Protection plate over motor
- Proven nylon-reinforced polymer traction cover
Ease of Use
- Identical platform compatibility as PC3
- Overload set at 125% of rated load
- Options: top limit switch, slack rope safety (for secondary wire rope)

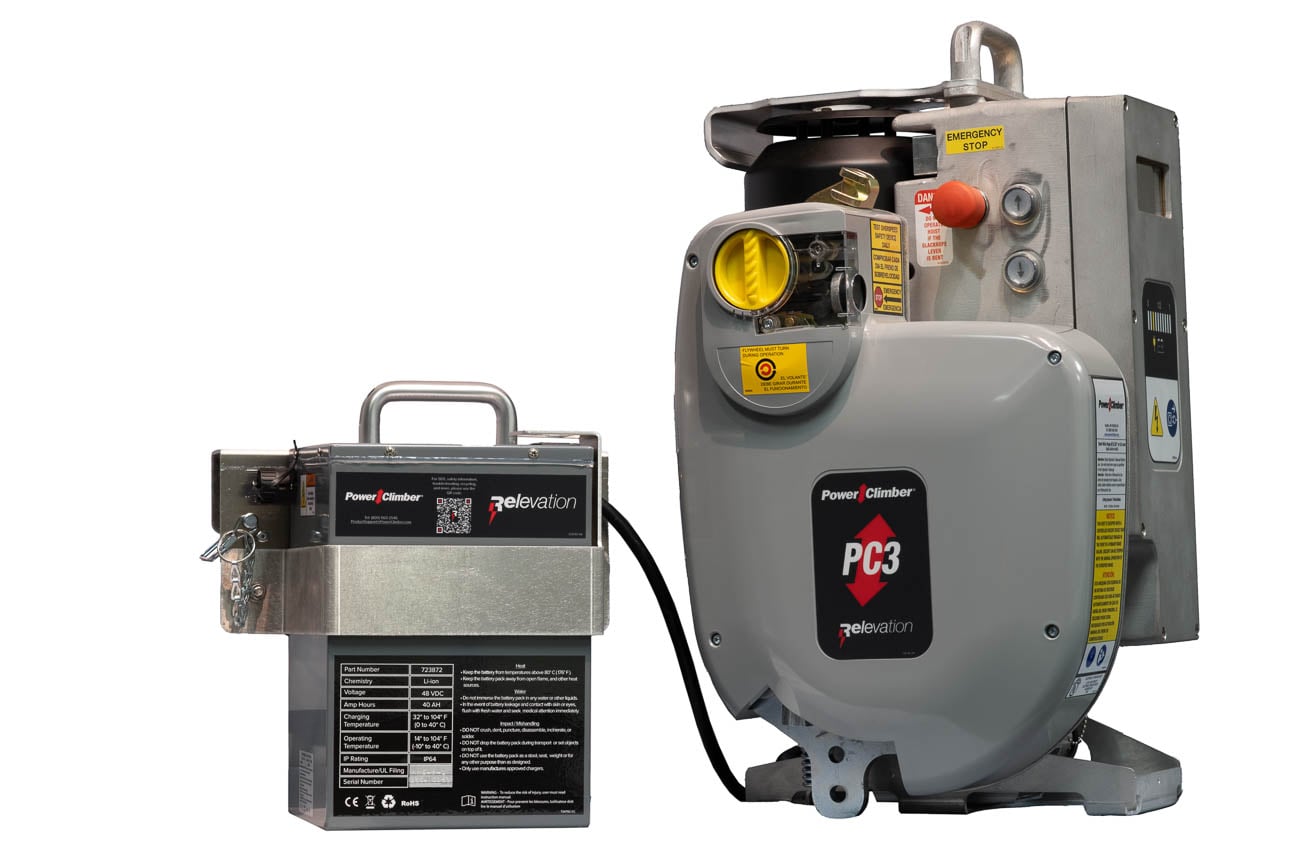

Battery Features
Superior Jobsite Performance
- 3 hours of total run time (up/down travel combined)
- Recharges in the down direction
Durable Exterior Casing
- Rated to IP64
- Integrated platform hanger bracket
Convenient Charging
- Lithium-ion battery technology
- 5A battery charger included
- Integrated battery management system
- Charges on 110/220V
- Full charge in 8 hours
Certifications
How Long is 3 Hours Run Time?
3 Hours Run Time = 180 minutes
Hoist Speed = 35 ft/min
Total Travel Distance = 6,300 ft
500 ft building
1000 ft round trip
6 round trips on a full charge
Hoist charges in down direction.
Can always travel down.
