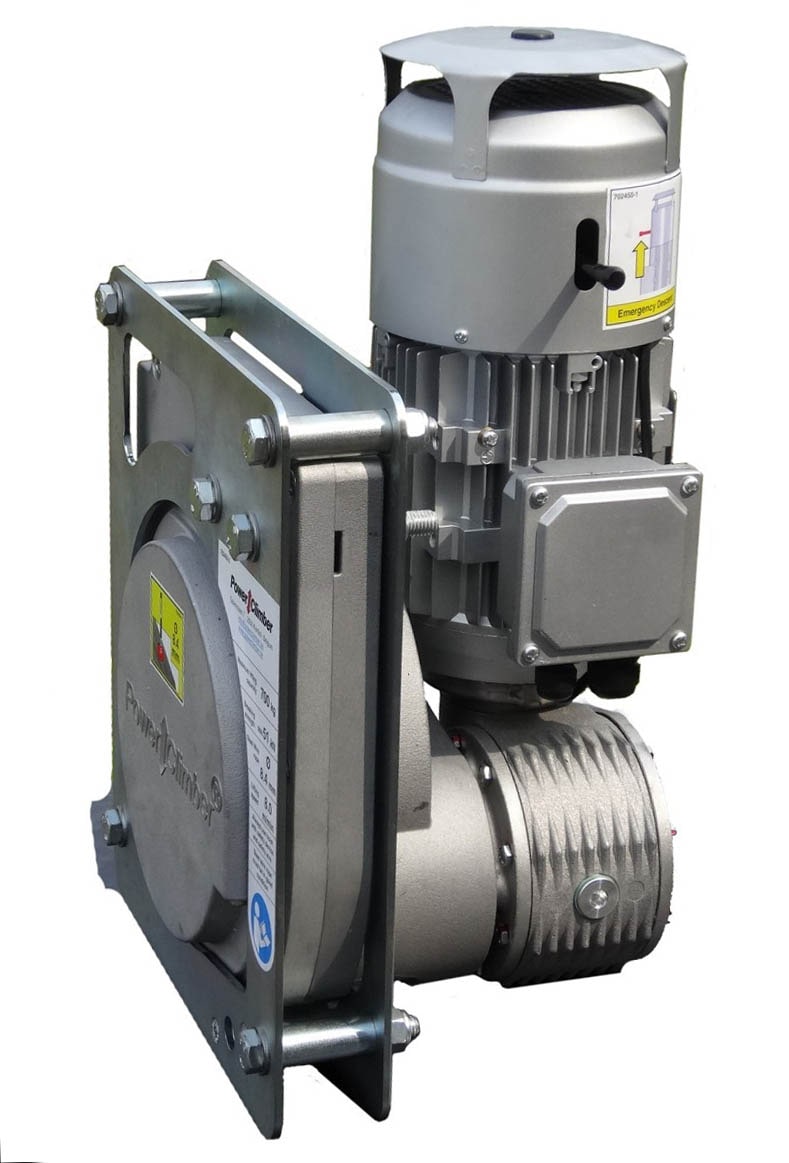

Atlas Hoist
Atlas Hoist (front)
Atlas Dimensions
Atlas Slack Rope Safety Device
Atlas Series Traction Hoist
With a simple design and load-dependent traction, the Atlas hoist offers extended wire rope life and multiple features in a cost-effective package. A robust wire rope path makes rope jams nearly impossible, and the Atlas is equipped with an external slack rope safety device and “no power” emergency descent system.
NOTE: Atlas hoists are designed for non-CE geographic regions.
Specifications
| Part Number | Model | Capacity | Slack Wire Rope Brake | Weight |
|---|---|---|---|---|
| 702407-1 | ATLAS 703-EXP | 700 kg |  | 45 kg |
Additional Specifications
- Power Supply: 400V 3ph 50 Hz
- Travel Speed: 8 mpm
- Wire Rope Diameter: ~8 mm
Benefits
- Simple and robust design allows rapid and efficient servicing with only two tools.
- Load dependent traction offers extended wire rope life.
- Robust casting and wire rope path nearly impossible to jam wire rope.
- Longer duty cycle provides operator confidence to finish job.
- External slack rope safety device.
Key Features
- Simple and robust design.
- Load dependent traction system.
- ‘No Power’ emergency descent system.
Specifications
| Part Number | Description | Notes |
|---|---|---|
| 702404-1 | External Slack Rope Safety | For secondary wire rope |
| 95310-02 | CCB for 2 Atlas hoists | 400V 3ph 50 Hz |
| 95300-MATL | Pigtail, 10-pole |
Additional Information
External Slack Rope Safety Device: The optional external slack rope safety device can be used with Atlas hoists to operate with a secondary suspension steel wire rope. In the event of a primary suspension rope going slack, the safety jaws will prevent movement on the secondary suspension rope.
