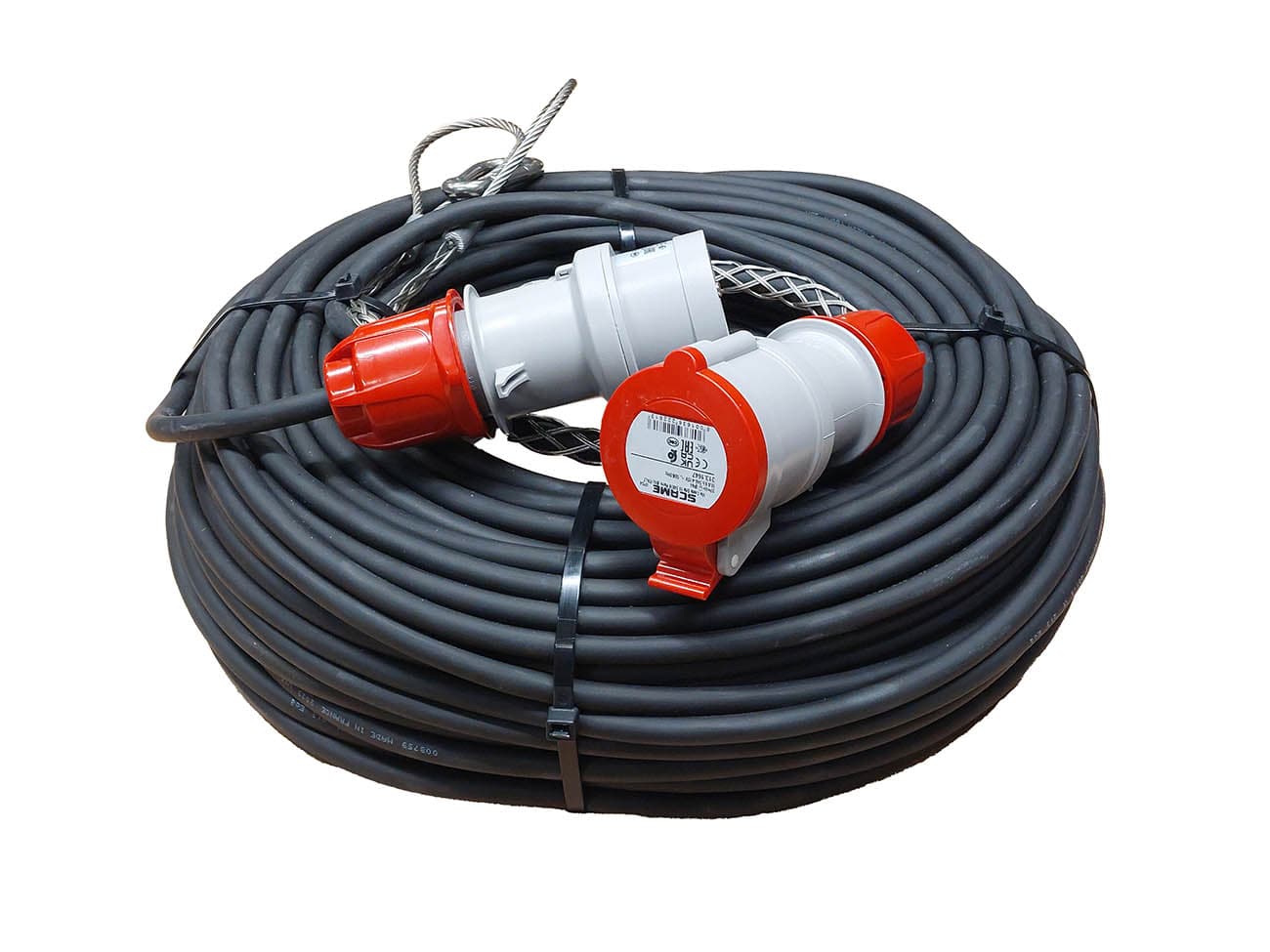

Power Supply Cables
Power Climber offers power cords for all UpPro, UpLite and Titan hoists.
Options are available in a variety of lengths from 50 m to 250 m as well as custom lengths.
Contact Power Climber to ensure you have the correct power supply cable for your hoist and needs.
Specifications
| Part Number | Power Supply Cables | Length | Wire Cross Section | Plug Type |
|---|---|---|---|---|
| D12102-100 | For 400V 3Ph hoists | 100 m | 5×2,5 mm² | 16A |
| D12102-150 | 150 m | 5×4 mm² | 16A | |
| D12102-250 | 250 m | 5×6 mm² | 32A | |
| D12103-050 | For 230V 3Ph hoists | 50 m | 5×2,5 mm² | 16A |
| D12103-100 | 100 m | 5×4 mm² | 16A | |
| D12103-150 | 150 m | 5×6 mm² | 32A | |
| D12103-250 | 250 m | 5×10 mm² | 63A | |
| D12104-030 | For 230V 1Ph hoists | 30 m | 3×2,5 mm² | 16A |
| D12104-050 | 50 m | 3×4 mm² | 16A | |
| D12104-100 | 100 m | 3×6 mm² | 16A | |
| D12104-150 | 150 m | 3×10 mm² | 63A | |
| D12104-250 | 250 m | 3×16 mm² | 63A |
Specifications
| Part Number | Power Supply Cables | Length | Wire Cross Section | Plug Type |
|---|---|---|---|---|
| 90417-xxxM | For 230V 1Ph hoists | per meter* | 3 x 4 mm² | 16A |
| 90415-xxxM | per meter* | 3 x 6 mm² | 16A | |
| 90423-xxxM | For 400V 3Ph hoists | per meter* | 5 x 2,5 mm² | 16A |
| 90443-xxxM | per meter* | 5 x 4 mm² | 16A | |
| 13930 | Cable retainer | |||
